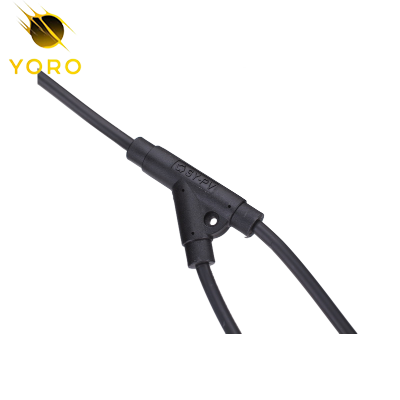

YORO 2-to-1 1000V Y Branch Parallel Cable Solar Connector

PRODUCT Solar Connector With Cable 999

Solar Connector Y Branch Parallel Cable Solar Panel 1 to 2 Y Cable 40A Wire Male Female 1 Pair (MFF+FMM,90CM)

Product Details:

Product NO.YR-CM21A
Place of OriginChina
Brand NameYUANRONG
CertificationTUV Rhineland, CE, RoHS, etc

Payment & Shipping Terms:

Minimum Order QuantityNegotiable
PriceNegotiable
Packaging Details50pcs / opp
Delivery Time3-5days
Payment TermsT/T, Paypal, D/A, D/P,
Supply Ability10000pcs / Week
Product Details

  • One Pair of Solar Y Branch Parallel Connectors
  • YUANRONG PV Solar connectors are made with highest quality materials
  • PV Solar Connectors are designed to complete a solar panel (PV) array, typically in parallel applications
  • PV Solar Connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions
Product Specification

Rated Voltage
额定电压		TUV 1000V DC/UL600V DCRating Current
额定电流		30A
Suitable Cable
电线规格		2.5-6.0mm²Pin Dimension
端子规格		Φ4.0mm
Proof Voltage
耐电压		TUV6000V AC(1Min)UL2200V DC(1Min)Pollution Degree
污染等级		2
Protection Class
防护等级		Class IIContact Material
端子材质		Copper ,Tin Plated（红铜镀锡）
Contact Resistance
接触电阻		≤ 5mΩConnector Material
连接器材质		PPO
Degree of Protection
IP防护等级		IP67(IEC 60529)Withdrawal Force
抜出力		≥ 50N
Insertion Force
插入力		≤ 50NTemperature Range
使用温度		-40 °C~+85 °C
Flame Class
阻燃等级		UL94V-0Waterproof and dustproof
防水防尘		☆☆☆☆☆

Solar Panel Connectors Y Branch Connectors 1 to 2 Solar Connectors Solar Cable Combiners – 1 Male to 2 Female (M / FF) and 1 Female to 2 Male (F / MM) Solar Panel Cables and Connectors (1 Pair to 1 Y 2)

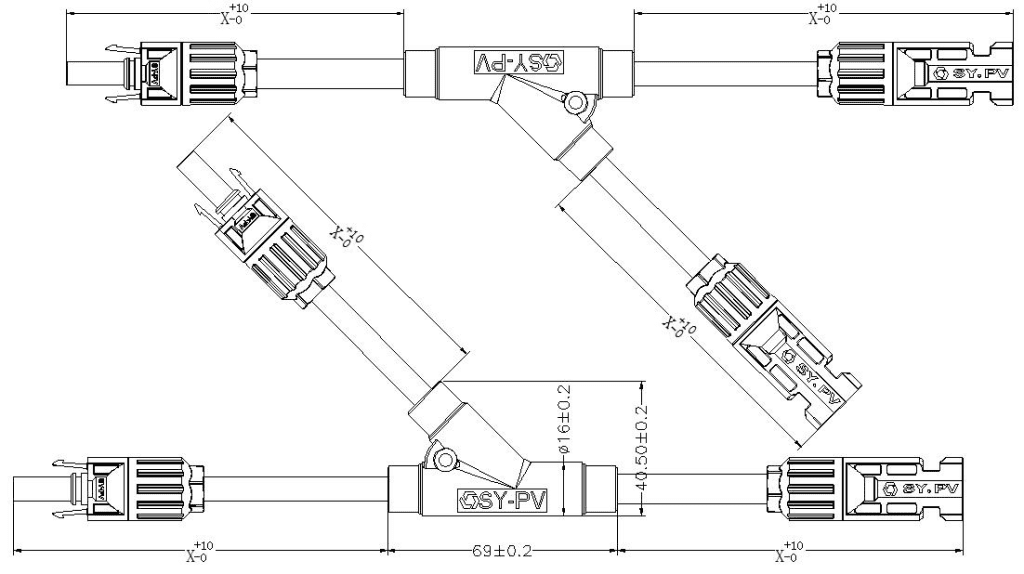

YUANRONG 2 to 1 MC4 Y Branch Connector (1Set = 2Male1Female + 2Female1Male) is a pair of photovoltaic cable connectors for solar panels.These connectors are usually used to connect two solar panel strings can also be connected in parallel, suitable for photovoltaic modules photovoltaic bus single connector.This 2Y branch connector can install all solar panels. It is 100% waterproof (IP67) so they can be used outdoors in any weather conditions.
