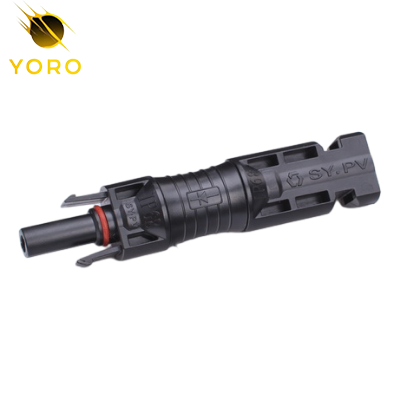

Diode Connector PRODUCT 1037
China Manufacturer PV Solar Diode Connector 10A 15A
Product Details:
| Product NO. | YR-CM4AD |
| Place of Origin | China |
| Brand Name | YUANRONG |
| Certification | TUV Rhineland, CE, RoHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | 50pcs / opp |
| Delivery Time | 3-5days |
| Payment Terms | T/T, Paypal, D/A, D/P, |
| Supply Ability | 10000pcs / Week |
Product Details
- Securely and easily connect solar cables to your PV system using our specialized connector.
- Features a reed-touch with inner-knob design for enhanced contact.
- Easy plug-and-play operation.
- Universally compatible for versatile field installation.
- Waterproof and dust-resistant for long-lasting durability.
- Fuse Connector product available, manufacturer price.

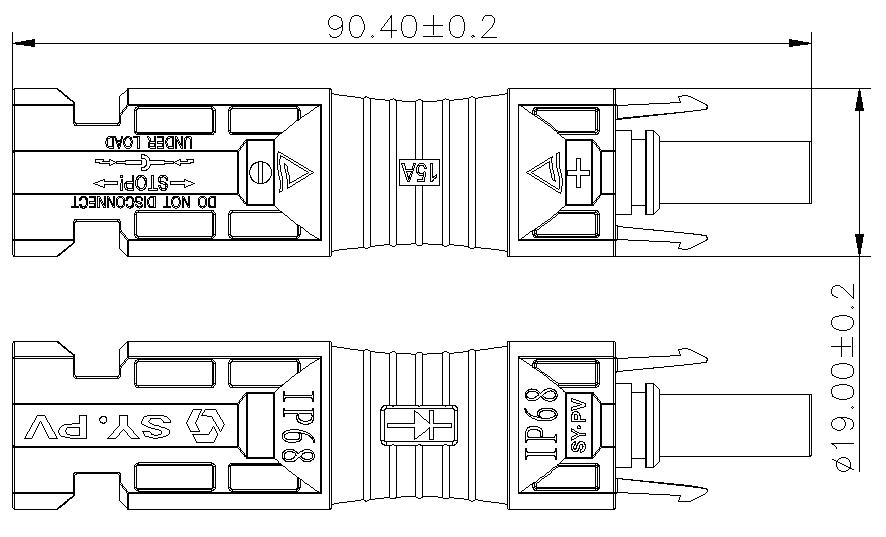

Product Specification
| Rated Voltage 额定电压 | TUV 1000V DC/UL600V DC | Rating Current 额定电流 | 15A |
| Suitable Cable 电线规格 | \ | Pin Dimension 端子规格 | Φ4.0mm |
| Proof Voltage 耐电压 | TUV6000V AC(1Min)UL2200V DC(1Min) | Pollution Degree 污染等级 | 2 |
| Protection Class 防护等级 | Class II | Contact Material 端子材质 | Brass,Tin Plated（黄铜镀锡） |
| Contact Resistance 接触电阻 | ≤ 5mΩ | Connector Material 连接器材质 | PPO |
| Degree of Protection IP防护等级 | IP67(IEC 60529) | Withdrawal Force 抜出力 | \ |
| Fitting Connector 装配连接器 | 4.0 Connector | Temperature Range 使用温度 | -40 °C~+85 °C |
| Flame Class 阻燃等级 | UL94V-0 | Waterproof and dustproof 防水防尘 | ☆☆☆☆☆ |
“In solar energy systems where multiple solar cell modules are connected in series to create a square cell array, it’s essential to incorporate an Solar diode in reverse parallel at both the positive and negative output terminals of each individual panel.This diode serves a critical role in maintaining the system’s efficiency and integrity. Specifically, it acts as a safeguard against localized shading or malfunctioning components within the array that could otherwise disrupt power generation.
When such issues arise, a forward bias is established across the bypass diode, enabling it to conduct electricity. This allows the working current of the series-connected components to circumvent the problematic element, flowing through the diode instead.
As a result, the overall power generation of the system remains largely unaffected by isolated faults. Simultaneously, the diode provides an extra layer of protection, preventing the bypassed component from experiencing damaging high forward bias conditions.”
