PV Fuse Connector IP67 Waterproof Dustproof In-line Fuse Holder Male and Female Solar Plug With 1 Fuse

PRODUCT Solar Fuse Connector 1094

PV Fuse Connector IP67 Waterproof Dustproof in-line Fuse Holder Male and Female Solar Plug with 1 Fuse

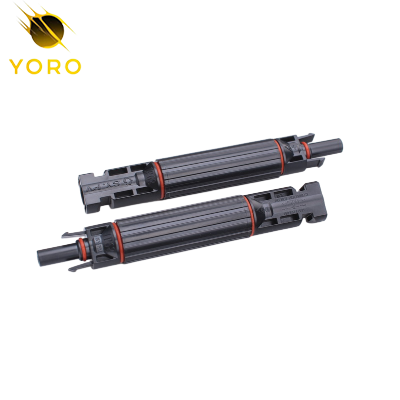

Fuse connector

Product Details:

Product NO.YR-CF4A
Place of OriginChina
Brand NameYUANRONG
CertificationTUV Rhineland, CE, RoHS, etc

Payment & Shipping Terms:

Minimum Order QuantityNegotiable
PriceNegotiable
Packaging Details50pcs / opp
Delivery Time3-5days
Payment TermsT/T, Paypal, D/A, D/P,
Supply Ability10000pcs / Week
Product Details

  • Compatible with solar cables of various insulation diameters.The Fuse Connector is engineered to provide robust single-circuit protection for your solar array. It safeguards your system from high-current damage, extending the lifespan of your solar panels.
  • Specifically designed for a range of DC applications.
  • Easy plug-and-play operation.
  • Features male-female automatic locking for convenient and reliable connections.
  • Fuse Connector product available, manufacturer price.
Product Specification

Rated Voltage
额定电压		TUV 1000V DCRating Current
额定电流		1A~15A(Fuse)
Suitable Cable
电线规格		\Pin Dimension
端子规格		Φ4.0mm
Proof Voltage
耐电压		TUV6000V AC(1MinPollution Degree
污染等级		2
Protection Class
防护等级		Class IIContact Material
端子材质		Brass,Tin Plated（黄铜镀锡）
Contact Resistance
接触电阻		≤ 5mΩConnector Material
连接器材质		PPO
Degree of Protection
IP防护等级		IP67(IEC 60529)Withdrawal Force
抜出力		\
Fitting Connector
装配连接器		4.0 ConnectorTemperature Range
使用温度		-40 °C~+85 °C
Flame Class
阻燃等级		UL94V-0Waterproof and dustproof
防水防尘		☆☆☆☆☆

Single-Circuit Protection: The Fuse Connector is engineered to provide robust single-circuit protection for your solar array. It safeguards your system from high-current damage, extending the lifespan of your solar panels.

Ease of Installation: With its user-friendly design, the Fuse Connector is easy to install and replace, requiring no specialized tools. This feature saves you both time and effort in system maintenance.

High Compatibility: The dual solar-compatible leads make it highly versatile, allowing for easy integration with a variety of solar adapter kits and panel leads.Durability: The waterproof and dust-resistant design ensures long-term reliability, even in harsh environmental conditions.Environmental Friendliness: Manufactured using recyclable materials, our Fuse Connector meets eco-friendly standards.Buy our Fuse Connector to enhance the safety, versatility, and durability of your solar array system. You’re not just buying an accessory; you’re buying peace of mind.
