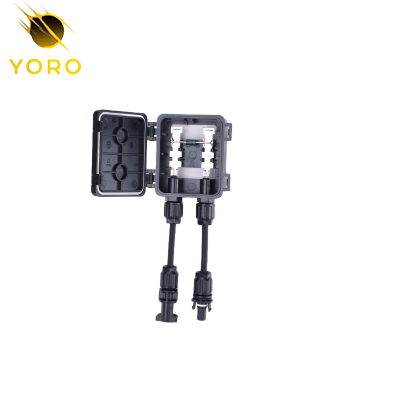

YORO PV Junction Box IP65 2.5mm2 90cm solar cable connector
Product Details:
| Product NO. | YR-JB2A |
| Place of Origin | China |
| Brand Name | YUANRONG |
| Certification | TUV Rhineland, CE, RoHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | 50pcs / opp |
| Delivery Time | 3-5days |
| Payment Terms | T/T, Paypal, D/A, D/P, |
| Supply Ability | 10000pcs / Week |
Product Details
- Solar Junction Box Manufacturer Price.
- Thin, compact design and convenient layout simplify the installation process.
- IP65 protection ensures consistent, long-lasting performance.
- Enhance the security and strength of connectors, minimizing the risk of connection issues over time.

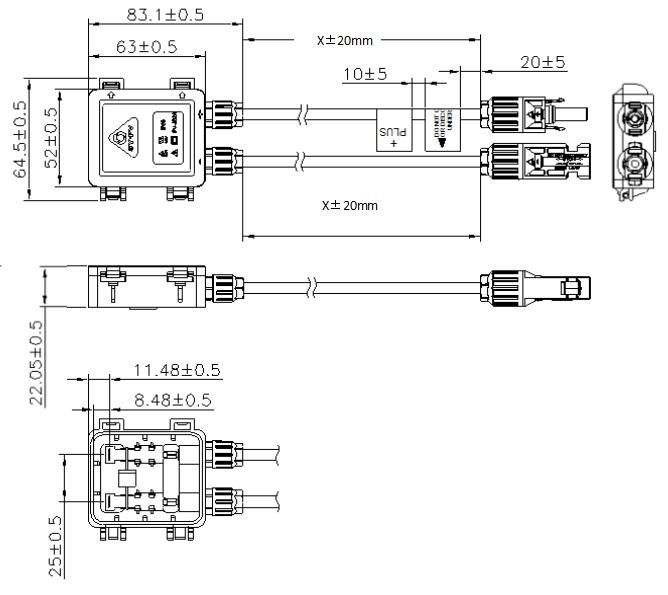

Product Specification
| Rated Voltage 额定电压 | TUV 1000V DC | Rating Current 额定电流 | 3A~15A |
| Suitable Cable 电线规格 | 2.5mm²/14AWG | Pin Dimension 端子规格 | Φ4.0mm |
| Proof Voltage 耐电压 | TUV6000V AC(1Min) | Pollution Degree 污染等级 | 2 |
| Protection Class 防护等级 | Class II | Contact Material 端子材质 | Copper ,Tin Plated（铜镀锡） |
| Contact Resistance 接触电阻 | ≤ 5mΩ | Connector Material 连接器材质 | PPO |
| Degree of Protection IP防护等级 | IP65(IEC 60529)(Potting) | No.of Rails 接线数 | 2 rail terminal(2条) |
| Joining of Ribbon 汇流带连接 | Soldering (焊接) | Temperature Range 使用温度 | -40 °C~+85 °C |
| Flame Class 阻燃等级 | UL94V-0 | Waterproof and dustproof 防水防尘 | ☆☆☆☆☆ |
PV Junction Box Manufacturer——YUANRONG
Harnessing the power of the sun through photovoltaic systems is a marvel of modern engineering. At the heart of these systems, ensuring their safety and efficiency, lies the solar junction box. This protective enclosure, also commonly referred to as a photovoltaic junction box or module junction box, plays a pivotal role in the overall functionality and longevity of solar installations.
Inside the junction box, one can find the leads that connect the solar panel to the string and the bypass diodes. These leads are crucial during the installation phase. They offer flexibility and ease, allowing the solar panel to be swiftly and securely connected to the string, ensuring a continuous flow of electricity.
In essence, while solar panels capture the sun’s energy, the solar junction box is the unsung hero that ensures this energy is safely and efficiently channeled to power our homes and businesses.
