YORO TUV 1000V 2 To1 Y Branch Solar Connector With Cables

16/08/2023PRODUCT Solar Connector With Cable 981

Product Details:

Product NO.	YR-CM21D
Place of Origin	China
Brand Name	YUANRONG
Certification	TUV Rhineland, CE, RoHS, etc

Payment & Shipping Terms:

Minimum Order Quantity	Negotiable
Price	Negotiable
Packaging Details	50pcs / opp
Delivery Time	3-5days
Payment Terms	T/T, Paypal, D/A, D/P,
Supply Ability	10000pcs / Week

Product Details

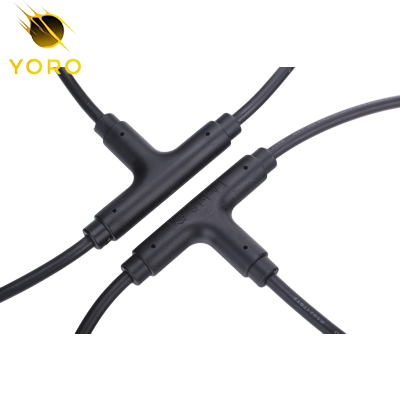

One Pair of Solar Y Branch Parallel Connectors
YUANRONG PV Solar connectors are made with highest quality materials
PV Solar Connectors are designed to complete a solar panel (PV) array, typically in parallel applications
PV Solar Connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions

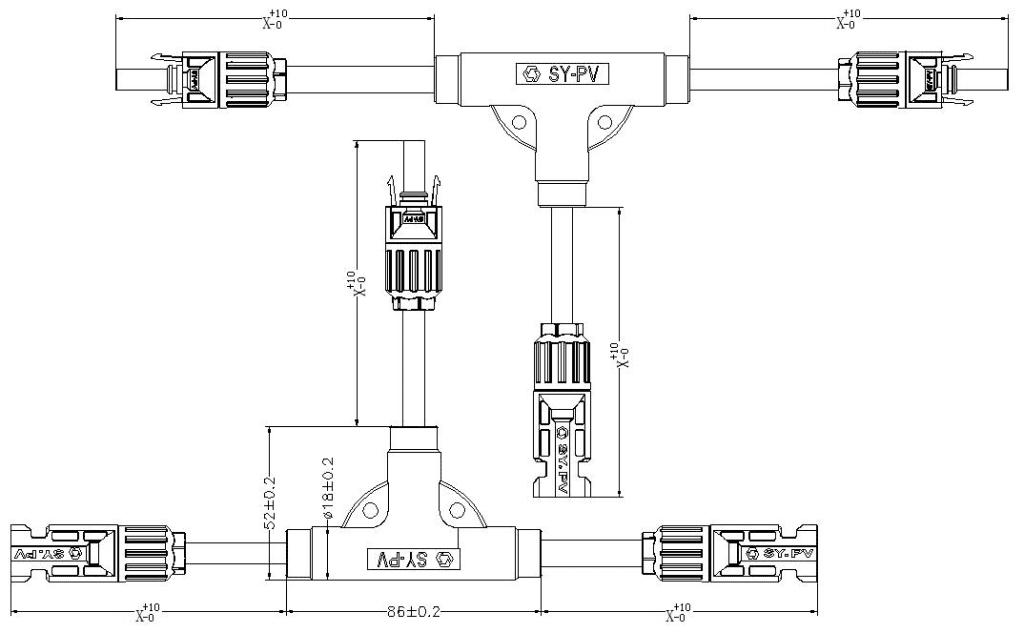

Product Specification

Rated Voltage 额定电压	TUV 1000V DC/UL600V DC	Rating Current 额定电流	30A
Suitable Cable 电线规格	2.5-6.0mm²	Pin Dimension 端子规格	Φ4.0mm
Proof Voltage 耐电压	TUV6000V AC(1Min)UL2200V DC(1Min)	Pollution Degree 污染等级	2
Protection Class 防护等级	Class II	Contact Material 端子材质	Copper ,Tin Plated（红铜镀锡）
Contact Resistance 接触电阻	≤ 5mΩ	Connector Material 连接器材质	PPO
Degree of Protection IP防护等级	IP67(IEC 60529)	Withdrawal Force 抜出力	≥ 50N
Insertion Force 插入力	≤ 50N	Temperature Range 使用温度	-40 °C~+85 °C
Flame Class 阻燃等级	UL94V-0	Waterproof and dustproof 防水防尘	☆☆☆☆☆

Solar Panel Connectors Y Branch Connectors 1 to 2 Solar Connectors Solar Cable Combiners – 1 Male to 2 Female (M / FF) and 1 Female to 2 Male (F / MM) Solar Panel Cables and Connectors (1 Pair to 1 Y 2)

YUANRONG 2 to 1 MC4 Y Branch Connector (1Set = 2Male1Female + 2Female1Male) is a pair of photovoltaic cable connectors for solar panels.These connectors are usually used to connect two solar panel strings can also be connected in parallel, suitable for photovoltaic modules photovoltaic bus single connector.This 2Y branch connector can install all solar panels. It is 100% waterproof (IP67) so they can be used outdoors in any weather conditions.
