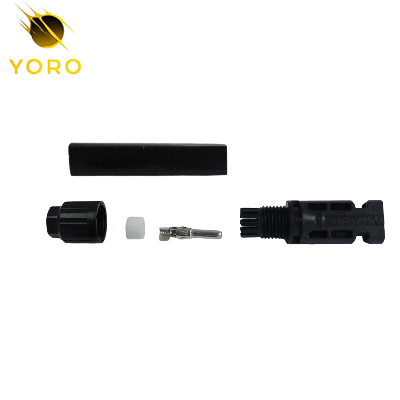

ECO Solar Cable Connector For Solar Panels And Photovoltaic Systems
Product Details:
| Product NO. | YR-HCB40 |
| Place of Origin | China |
| Brand Name | YUANRONG |
| Certification | TUV Rhineland, CE, RoHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | 50pcs / opp |
| Delivery Time | 3-5days |
| Payment Terms | T/T, Paypal, D/A, D/P, |
| Supply Ability | 10000pcs / Week |
| Rated Voltage 额定电压 | TUV 1500V DC | Rating Current 额定电流 | 40A |
| Suitable Cable 电线规格 | 2.5-6.0mm²/14-10AWG | Pin Dimension 端子规格 | Φ4.0mm |
| Proof Voltage 耐电压 | TUV8000V AC(1Min) | Pollution Degree 污染等级 | 2 |
| Protection Class 防护等级 | Class II | Contact Material 端子材质 | Copper ,Tin Plated（红铜镀锡） |
| Contact Resistance 接触电阻 | ≤ 0.5mΩ | Connector Material 连接器材质 | PPO |
| Degree of Protection IP防护等级 | IP68(IEC 60529) | Withdrawal Force 抜出力 | ≥ 50N |
| Insertion Force 插入力 | ≤ 50N | Temperature Range 使用温度 | -40 °C~+85 °C |
| Flame Class 阻燃等级 | UL94V-0 | Waterproof and dustproof 防水防尘 | ☆☆☆☆☆ |
This PV Solar connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. YUANRONG Solar Connectors are made with highest quality materials. They are both heavier and sturdier than many other brands, ensuring long term reliability and performance. These PV Solar Connectors are designed to complete a solar panel (PV) array, typically in parallel applications. These connectors are also waterproof and resist dust buildup.
YORO connectors ensure secure PV module connections. Compliant with TUV/UL/IEC/CE, ideal for Ø2.5-Ø16mm² cables. Designed for longevity and efficiency.
