Solar Panel Male And Female PV Connectors For Solar System

PRODUCT Solar Panel Connector 993

PV Connector Solar Panel Male And Female Connectors For solar system

Product Details:

Product NO.YR-CP4A
Place of OriginChina
Brand NameYUANRONG
CertificationTUV Rhineland, CE, RoHS, etc

Payment & Shipping Terms:

Minimum Order QuantityNegotiable
PriceNegotiable
Packaging Details50pcs / opp
Delivery Time3-5days
Payment TermsT/T, Paypal, D/A, D/P,
Supply Ability10000pcs / Week
Product Details

  • PV Solar Connectors are also waterproof and resist dust build-up
  • YUANRONG PV Solar connectors are made with highest quality materials
  • PV Solar Connectors are designed to complete a solar panel (PV) array, typically in parallel applications
  • PV Solar Connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions

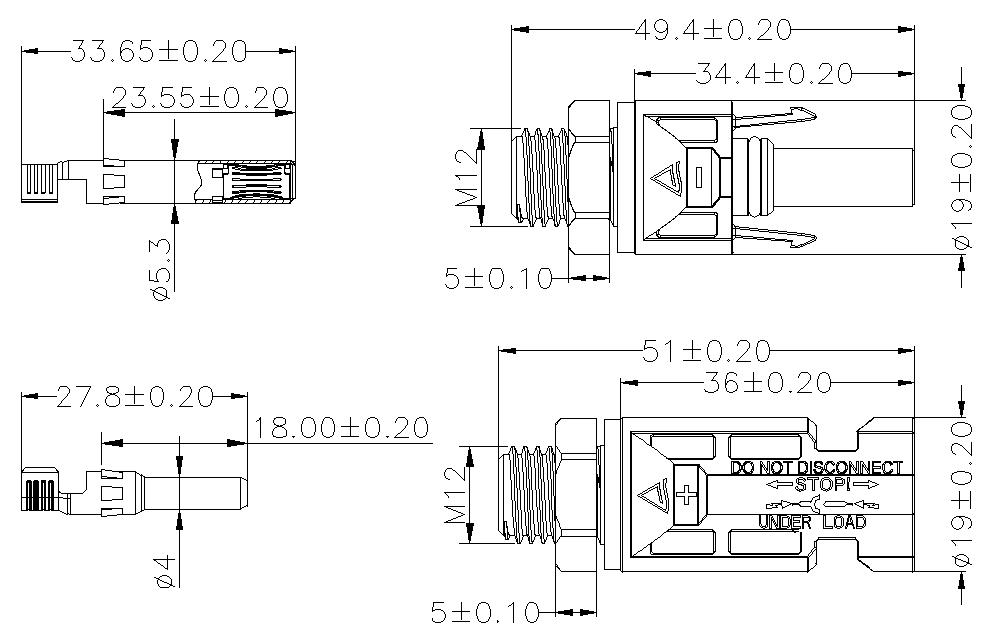

Product Specification

Rated Voltage
额定电压		TUV 1000V DC/UL600V DCRating Current
额定电流		15～30A
Suitable Cable
电线规格		1.5-6.0mm²/16-10AWGPin Dimension
端子规格		Φ4.0mm
Proof Voltage
耐电压		TUV6000V AC(1Min)UL2200V DC(1Min)Pollution Degree
污染等级		2
Protection Class
防护等级		Class IIContact Material
端子材质		Copper ,Tin Plated（紫铜镀锡）
Contact Resistance
接触电阻		≤ 0.5mΩConnector Material
连接器材质		PPO
Degree of Protection
IP防护等级		IP67(IEC 60529)Withdrawal Force
抜出力		≥ 50N
Insertion Force
插入力		≤ 50NTemperature Range
使用温度		-40 °C~+85 °C
Flame Class
阻燃等级		UL94V-0Waterproof and dustproof
防水防尘		☆☆☆☆☆
Solar panel Connector

This PV Solar connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. YUANRONG Solar Connectors are made with highest quality materials. They are both heavier and sturdier than many other brands, ensuring long term reliability and performance. These PV Solar Connectors are designed to complete a solar panel (PV) array, typically in parallel applications. These connectors are also waterproof and resist dust buildup.
