PV solar connector
1500V Solar Connector Expert for PV Cable Connection
849YORO connectors ensure secure PV module connections. Compliant with TUV/UL/IEC/CE, ideal for Ø2.5-Ø16mm² cables. Designed for longevity and efficiency.
View detailsHot Sales Outdoor IP68 Waterproof Electrical 2/3/4/5/6 Pin Screw Connector Circular IP68 Waterproof Connector
Ip68 Waterproof Connector waterproof Electrical Circular Connector outdoor Plastic Connector Cable
| Product NO. | YORO-PV-C4D(TUV) |
| Place of Origin | China |
| Brand Name | YUANRONG |
| Certification | TUV Rhineland, CE, RoHS, etc |
Payment & Shipping Terms:
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | 50pcs / opp |
| Delivery Time | 3-5days |
| Payment Terms | T/T, Paypal, D/A, D/P, |
| Supply Ability | 10000pcs / Week |
| Product Specification | |||
| Rated Voltage | TUV 1000V DC/UL600V DC | Contact Material | Copper ,Tin Plated（红铜镀锡） |
| 额定电压 | 端子材质 | ||
| Rating Current | 20～30A | Contact Resistance | ≤ 0.5mΩ |
| 额定电流 | 接触电阻 | ||
| Suitable Cable | 2.5-6.0mm²/14-10AWG | Connector Material | PPO |
| 电线规格 | 连接器材质 | ||
| Pin Dimension | Φ4.0mm | Degree of Protection | IP67(IEC 60529) |
| 端子规格 | IP防护等级 | ||
| Proof Voltage | TUV6000V AC(1Min)UL2200V DC(1Min) | Withdrawal Force | ≥ 50N |
| 耐电压 | 抜出力 | ||
| Pollution Degree | 2 | Insertion Force | ≤ 50N |
| 污染等级 | 插入力 | ||
| Protection Class | Class II | Temperature Range | -40 °C~+85 °C |
| 防护等级 | 使用温度 | ||
| Flame Class | UL94V-0 | ||
| 阻燃等级 | |||
Why Choose Us
| Technical Edge |
| 15 Years of Patented PV Connector Technology | 100% Uniform Coating | IP68 Dust/Waterproof + 2000V Voltage Resistance |
| ✅ High-purity copper alloy terminals (conductivity ≥98% IACS) |
| ✅ Laser welding process improves tensile strength by 30% |
| ✅ Compatible with MC4/XT60 and other mainstream interfaces, leading industry adaptability” |
| Quality Assurance |
| TÜV/UL Dual-Certified Factory | 36-Step Quality Inspections | Zero Failures in 10+ Years of Operation |

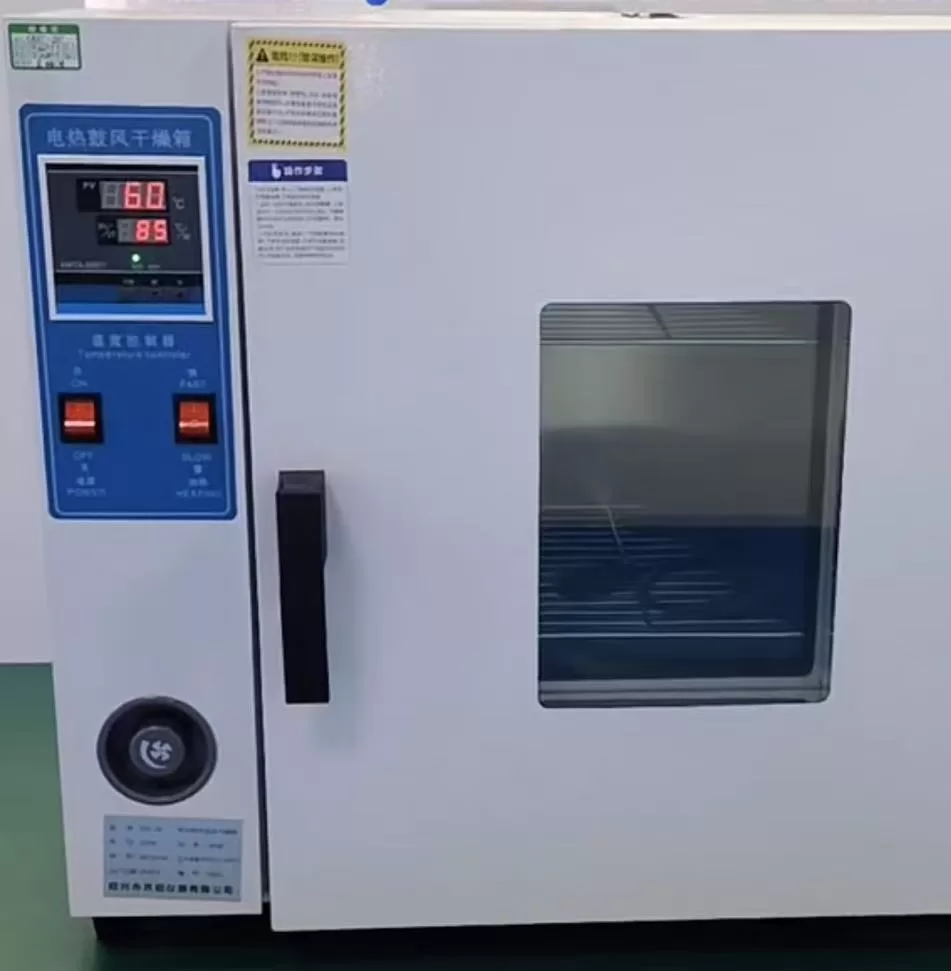

| 🔥 Extreme testing: -40°C freezing → 120°C baking → 500 plug/unplug cycles → Zero failures |
| 🔥 Traceable materials: Copper batch IDs traceable to mines, eliminating inferior substitutes |
| 🔥 Warranty: 24/7 after-sales support |
| Service Commitment |
| 7-Day Lightning-Fast Delivery | Custom Solutions | Global After-Sales Support |
| 🚀 Real-time regional inventory map for urgent order prioritization |
| 🚀 ODM/OEM support: Custom colors, logos, and packaging |
| 🚀 On-site technical teams: Free installation training |
