Guidelines for Proper Solar Connector Installation

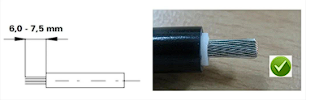

When setting up your solar system, the first step is to ensure that your wires are prepared correctly. With YORO NEW ENERGY’s guidance, strip your wires to a precise length of 6~7.5mm. It’s crucial to note that during this process, the number of copper wires cut should not exceed 5. To achieve the best results and maintain the integrity of your solar system, we highly recommend using professional-grade strippers.By adhering to these standards, you not only ensure the longevity of your connections but also optimize the efficiency of your solar setup. Trust in YORO NEW ENERGY’s expertise to guide you through a seamless installation process.

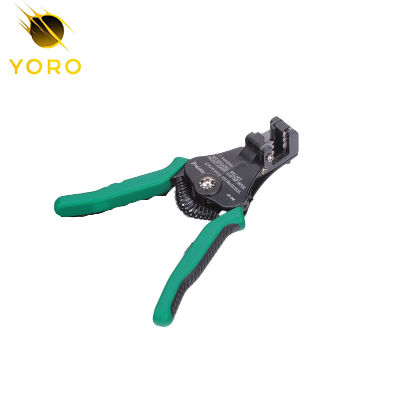

Tool recommendation: wire stripper

Selecting the Right Insert with YORO NEW ENERGY’s Precision

When working with conductors of varying cross-sectional areas, it’s vital to choose the correct insert to ensure a secure and efficient connection. With YORO NEW ENERGY’s range of specialized inserts, you can find the perfect fit for conductors with cross-sectional areas of 1.5mm2, 2.5mm2, 4mm2, 6mm2, and 10mm2. Each of these inserts is clearly marked with its respective cross-sectional area, ensuring ease of identification. Additionally, for accurate and consistent wire preparation, our inserts come equipped with a length locator. Trust in YORO NEW ENERGY’s precision tools and accessories to elevate the quality and reliability of your solar installations.

Ensuring Optimal Crimping with YORO NEW ENERGY’s Standards

Achieving a high-quality crimp is essential for the longevity and efficiency of solar installations. YORO NEW ENERGY sets stringent guidelines to ensure your crimp meets the highest standards.A qualified crimp, as per our guidelines, should exhibit no signs of broken wires, missing wires, or burrs. The copper wires must appear symmetrical and be correctly positioned on both the front and back.

Taking a 4mm2 cable as a reference, and in alignment with the IEC 60352-2 standard, YORO NEW ENERGY mandates that the pull-off force for the open crimp ends of metal pins should be at least 310N. Additionally, the crimp resistance should not exceed 135μΩ. By adhering to these standards, YORO NEW ENERGY ensures that every connection in your solar system is robust, reliable, and efficient.

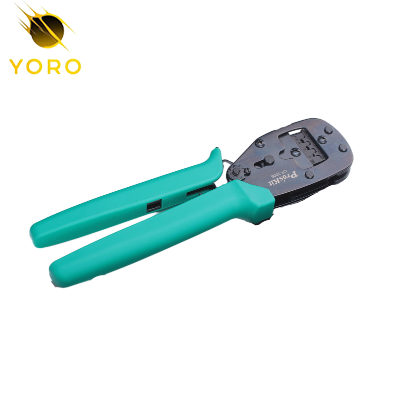

Tool recommendation: crimping pliers

Experience High-Efficiency Crimping with YORO NEW ENERGY’s Advanced Tools

YORO NEW ENERGY prides itself on offering tools that are not only user-friendly but also highly efficient. Our crimping tools are designed for ease of operation, allowing the metal core to auto-retract, which significantly boosts crimping efficiency.

For added flexibility, our tools come with interchangeable inserts, each clearly marked with the cross-sectional area. Additionally, positioning blocks can be swapped out as per specific requirements. What sets YORO NEW ENERGY’s tools apart is the consistent reliability they offer. Every crimp ensures minimal resistance, maintaining a stable connection every time. Choose YORO NEW ENERGY for a seamless and efficient crimping experience.

The Undeniable Importance of Photovoltaic Connectors in Solar Power Plants

While photovoltaic connectors might represent a small fraction of the total cost of a solar power plant, their significance cannot be understated. These connectors play a pivotal role in the overall functionality of the system. YORO NEW ENERGY emphasizes the importance of investing in high-quality photovoltaic connectors. When combined with the correct installation techniques, these connectors guarantee the consistent and stable performance of solar power plants. It’s a clear testament to the adage that sometimes, the smallest components can have the most profound impact. With YORO NEW ENERGY, ensure your solar power plant’s longevity and efficiency.
